AIC Nitte Internship

Overview

Role: Intern | Organization: AIC NITTE | Duration: 1st Year Internship

Focus Areas:

Hands-on internship focused on bridging digital design, hardware systems, and real-world engineering workflows.

3D Aircraft Modeling using Tinkercad

Tools:

What I Did

• Designed a complete 3D aircraft model using primitive shapes.
• Applied scaling, alignment, and geometric modeling principles.
• Prepared model for real-world manufacturing.

Process

• Created model using cubes, cylinders, cones.
• Exported as STL file.
• Printed using additive manufacturing.

Outcome

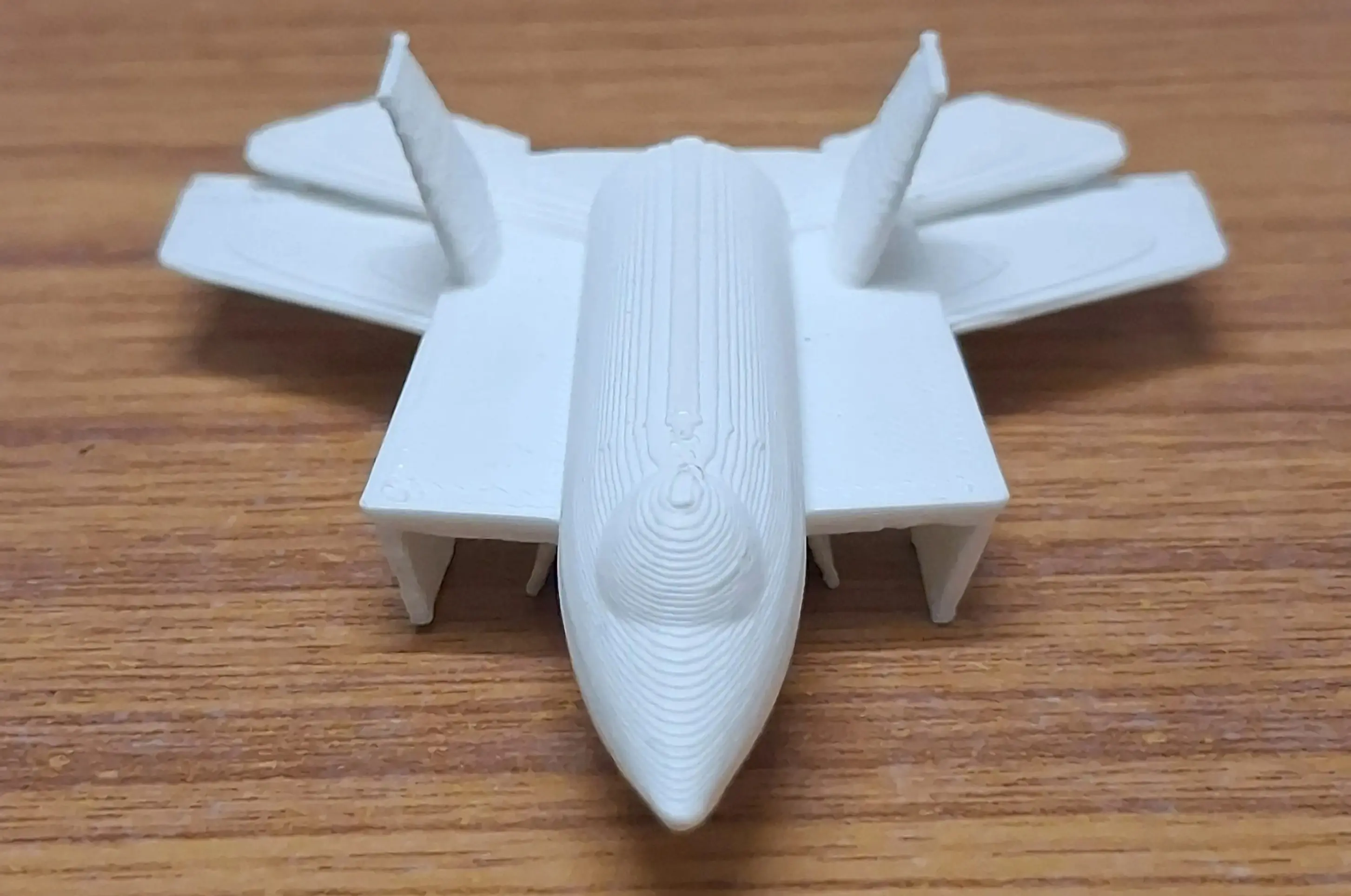

Successfully converted digital design → physical 3D printed model.

Model Showcase

3D Aircraft Model demonstration.

3D Scanning using Meshmixer

Tools:

What I Did

• Captured object images from multiple angles.
• Generated 3D model using photogrammetry.
• Cleaned and refined mesh.

Technical Work

• Used "Make Solid", "Smooth", "Close Cracks".
• Removed noise and improved surface quality.

Outcome

Converted physical object → clean digital 3D model.

Scanning Showcase

Introduction to Arduino & Sensor Integration

Before diving into complex embedded systems, I attended a hands-on introductory session focused on microcontrollers and sensors. We were provided with original Arduino boards, breadboards, IR sensors, and LEDs to learn the fundamentals of circuit building and hardware integration.

• Understood digital and analog pin configurations on the Arduino.
• Wired an IR sensor to control a red LED, observing the sensor's blue indicator glow on light surfaces and the red LED glow on dark surfaces.
• Gained practical experience bridging code with physical hardware components on a breadboard.

Arduino-Based Tic Tac Toe System

System Overview

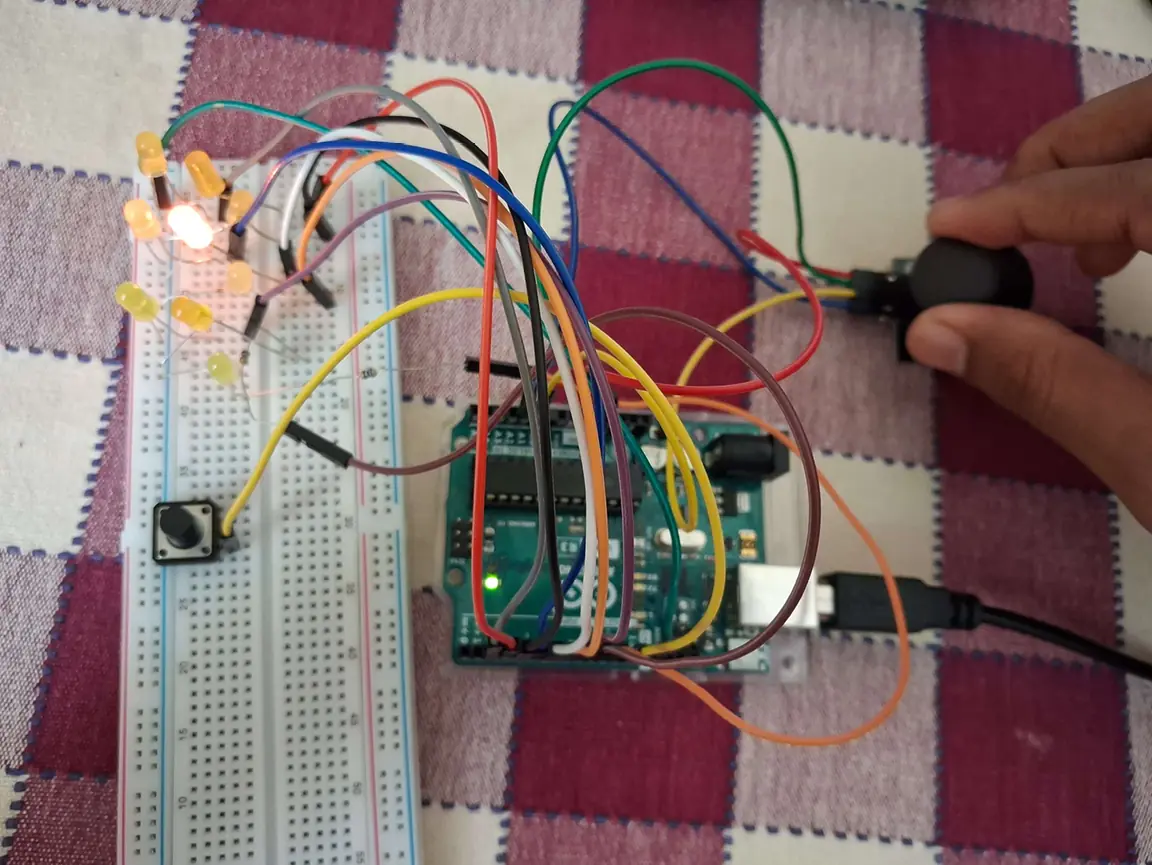

Built an interactive 2-player game using Arduino Uno. Integrated LEDs, joystick, push button, and buzzer.

Outcome

Developed a complete embedded system combining hardware control and real-time game logic.

// Define LED pins
const int ledPins[9] = {2, 3, 4, 5, 6, 7, 8, 9, 10};

// Define input pins
const int buttonPin = 12;
const int buzzerPin = 13;
const int vrxPin = A0;
const int vryPin = A1;

// Game variables
int board[9] = {0}; // 0: empty, 1: X, 2: O
int currentPlayer = 1; // 1: X, 2: O
int selected = 0; // Selected cell index

// Timing variables for blinking
unsigned long previousMillis = 0;
const long blinkInterval = 300;
bool blinkState = false;

void setup() {
  for (int i = 0; i < 9; i++) {
    pinMode(ledPins[i], OUTPUT);
    digitalWrite(ledPins[i], LOW);
  }
  pinMode(buttonPin, INPUT_PULLUP);
  pinMode(buzzerPin, OUTPUT);
  digitalWrite(buzzerPin, LOW);
  Serial.begin(9600);
}

void loop() {
  int xValue = analogRead(vrxPin);
  int yValue = analogRead(vryPin);
  selected = getSelectedCell(xValue, yValue);
  blinkSelectedLED();
  if (digitalRead(buttonPin) == LOW) {
    delay(200);
    if (board[selected] == 0) {
      board[selected] = currentPlayer;
      if (checkWin(currentPlayer)) {
        indicateWin(currentPlayer);
        while (true);
      }
      currentPlayer = (currentPlayer == 1) ? 2 : 1;
    }
  }
}

int getSelectedCell(int x, int y) {
  int row = 1;
  int col = 1;
  if (x < 341) col = 0;
  else if (x > 682) col = 2;
  if (y < 341) row = 0;
  else if (y > 682) row = 2;
  return row * 3 + col;
}

void blinkSelectedLED() {
  unsigned long currentMillis = millis();
  if (currentMillis - previousMillis >= blinkInterval) {
    previousMillis = currentMillis;
    blinkState = !blinkState;
    for (int i = 0; i < 9; i++) {
      if (i == selected && board[i] == 0) {
        digitalWrite(ledPins[i], blinkState ? HIGH : LOW);
      } else {
        if (board[i] == 1) {
          digitalWrite(ledPins[i], HIGH);
        } else if (board[i] == 2) {
          digitalWrite(ledPins[i], blinkState ? HIGH : LOW);
        } else {
          digitalWrite(ledPins[i], LOW);
        }
      }
    }
  }
}

bool checkWin(int player) {
  int winCombos[8][3] = {
    {0, 1, 2}, {3, 4, 5}, {6, 7, 8},
    {0, 3, 6}, {1, 4, 7}, {2, 5, 8},
    {0, 4, 8}, {2, 4, 6}
  };
  for (int i = 0; i < 8; i++) {
    if (board[winCombos[i][0]] == player &&
        board[winCombos[i][1]] == player &&
        board[winCombos[i][2]] == player) {
      return true;
    }
  }
  return false;
}

void indicateWin(int player) {
  digitalWrite(buzzerPin, HIGH);
  delay(1000);
  digitalWrite(buzzerPin, LOW);
  for (int i = 0; i < 9; i++) {

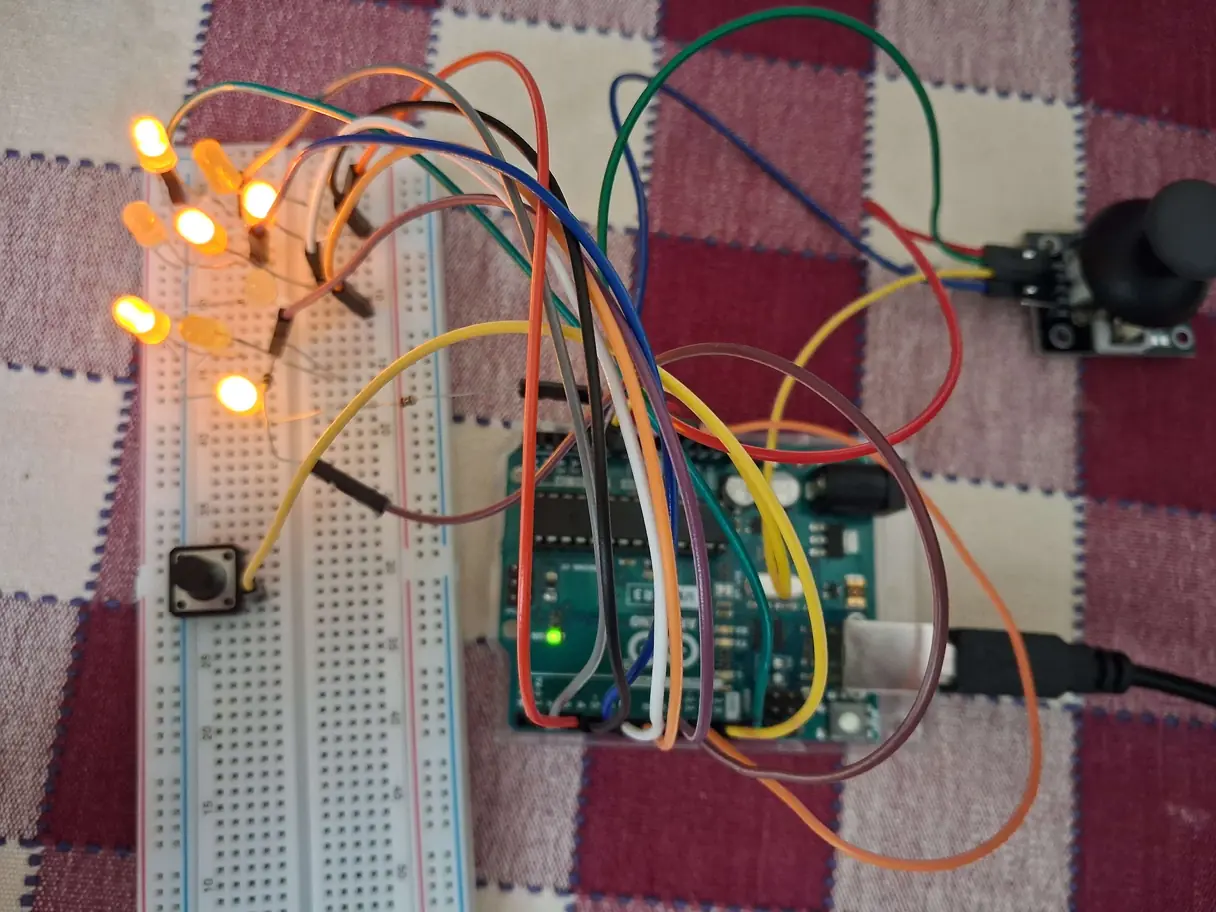

    if (player == 1) {
      if (i == 0 || i == 2 || i == 4 || i == 6 || i == 8) {
        digitalWrite(ledPins[i], HIGH);
      } else {
        digitalWrite(ledPins[i], LOW);
      }

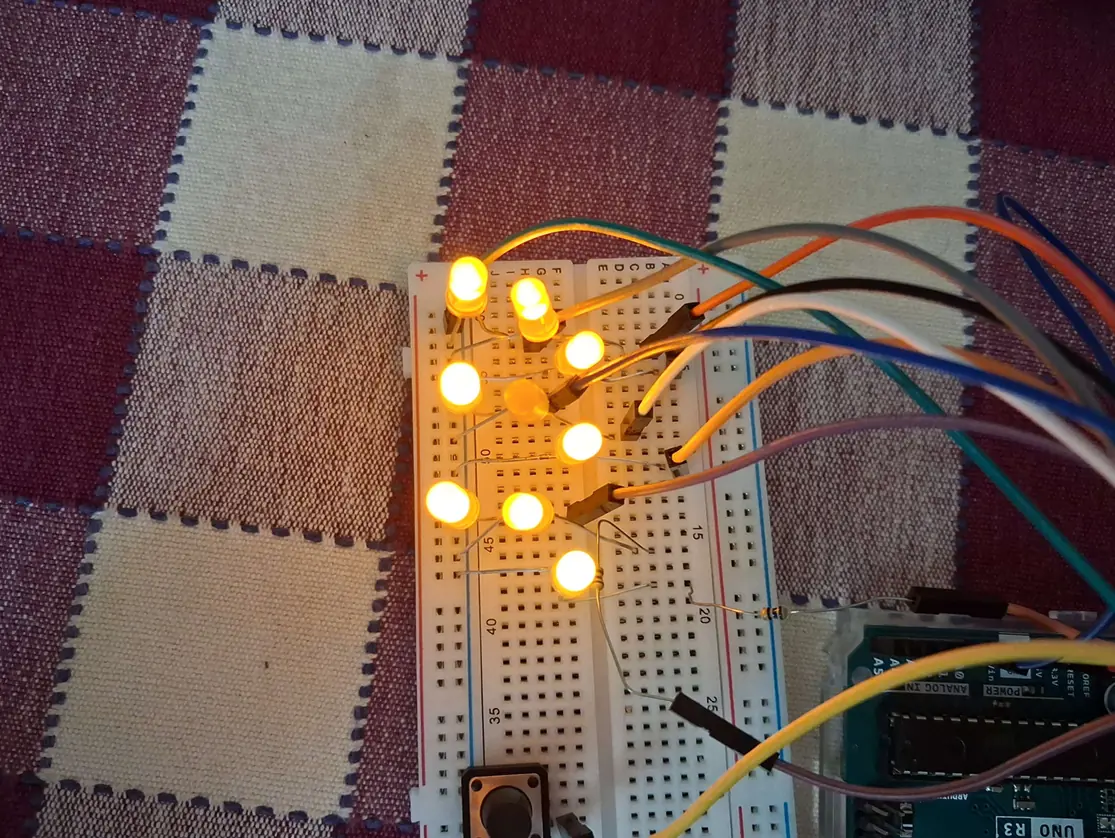

    } else {
      if (i != 4) {
        digitalWrite(ledPins[i], HIGH);
      } else {
        digitalWrite(ledPins[i], LOW);
      }
    }
  }
}

Innovation & Design Thinking Session

• Participated in an intensive workshop covering the core frameworks of innovation and user-centric design.
• Learned effective problem-solving methodologies to tackle real-world engineering and business challenges.
• Explored strategies for transforming rough ideas into viable, scalable startup prototypes.

Startup Ecosystems Virtual Session

Date: June 13, 2025 | Format: Virtual Masterclass

• Participated in an intensive, day-long virtual session exploring the foundational pillars that build and sustain thriving startup ecosystems.
• Gained insights into the complete startup lifecycle, from early-stage incubation and funding strategies to market acceleration.
• Learned how emerging tech ventures navigate investor relations, product-market fit, and sustainable scaling.

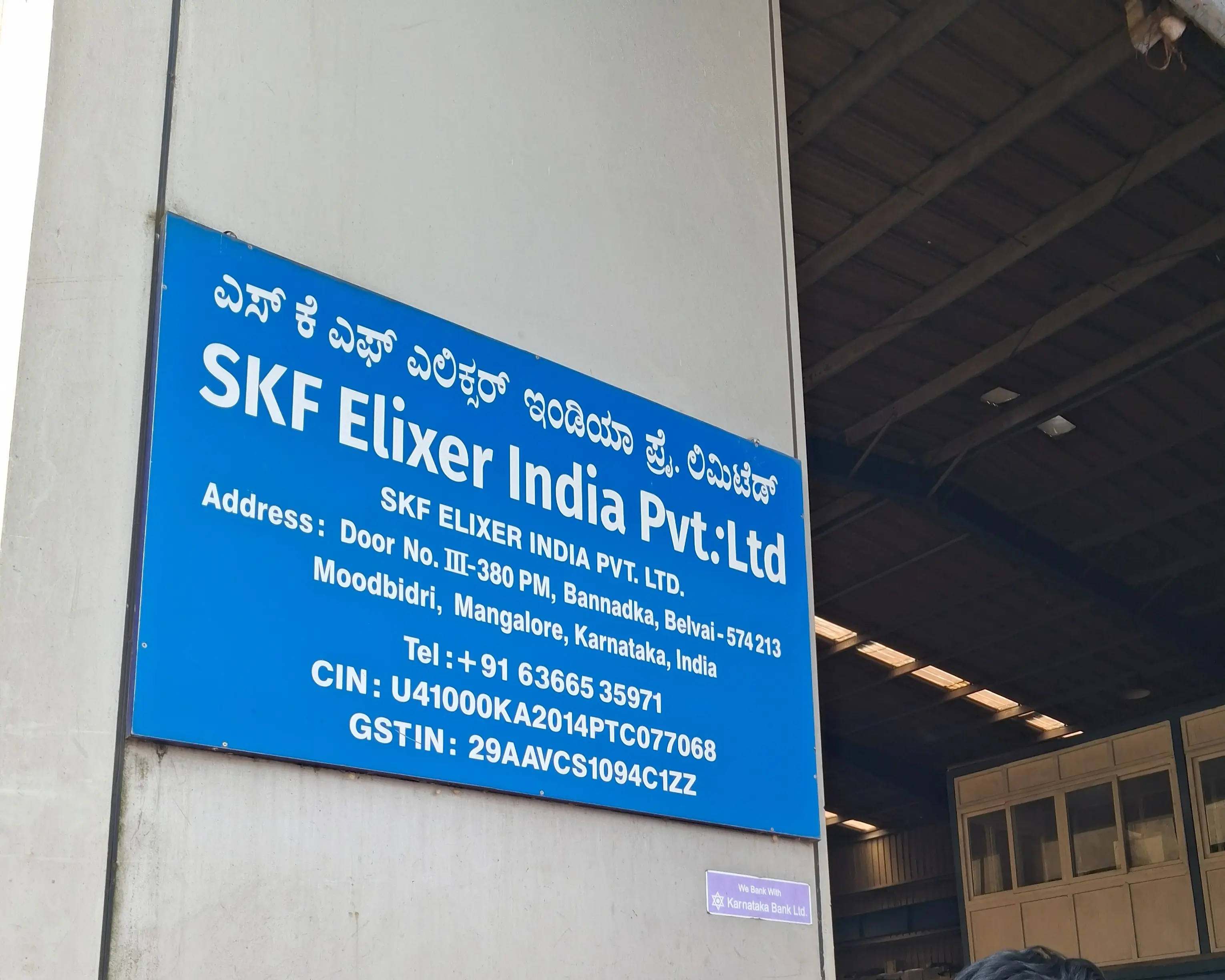

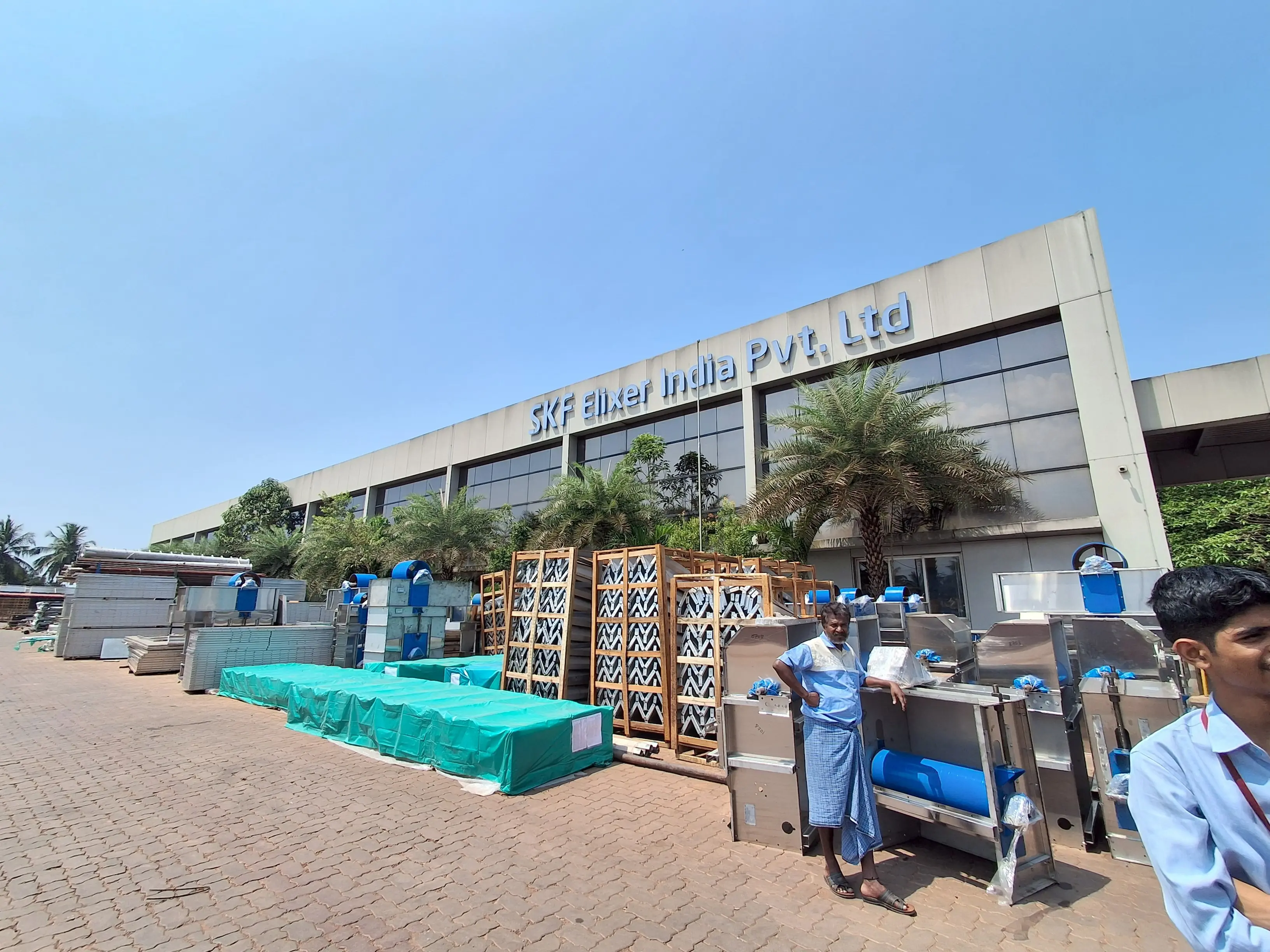

Industrial Visit – SKF Elixer India Pvt Ltd

Location: Moodbidri, Mangalore, Karnataka

• Observed real-world manufacturing processes.
• Learned about industrial automation and production workflows.
• Understood practical application of engineering concepts.

Industrial Visit Showcase

Internship Completion & Certification

Key Learnings

• Bridged gap between digital design and physical manufacturing.
• Learned embedded system design and hardware interfacing.
• Gained exposure to real-world engineering environments.
• Improved problem-solving through hands-on projects.
